- SPECIFICATIONS
- Maximum Polyphony: 4 voices
- User Memory: 16
- Preset Memory: 32

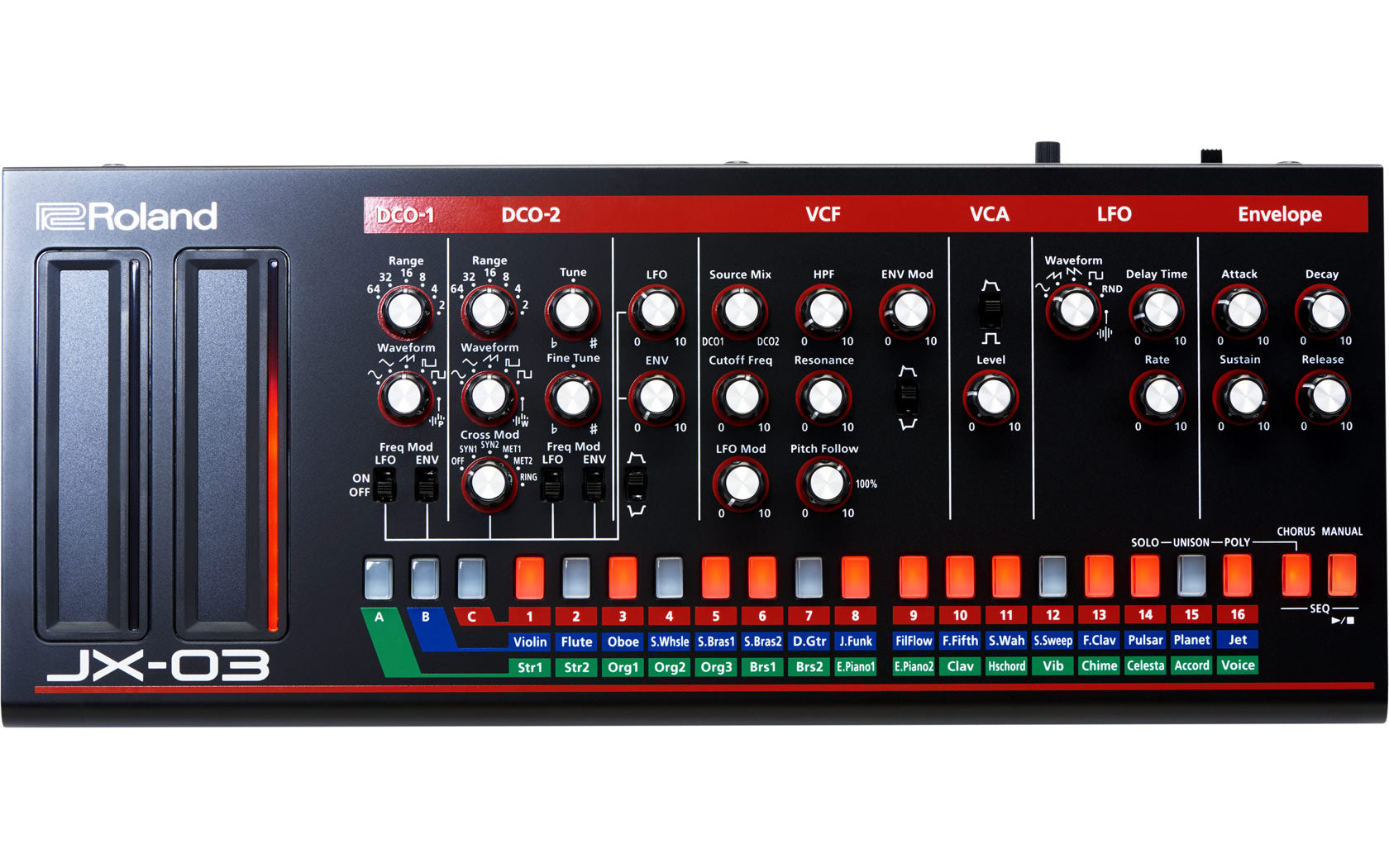

- Controllers: VOLUME knob, Ribbon controllers (1, 2), DCO-1 Section: RANGE select knob, WAVE FORM select knob, FREQ MOD LFO switch, FREQ MOD ENV switch, DCO-2 Section: RANGE select knob, WAVE FORM select knob, CROSS MOD select knob, TUNE knob, FINE TUNE knob, FREQ MOD LFO switch, FREQ MOD ENV switch, LFO DEPTH knob, ENV DEPTH knob, Polarity switch, VCF Section: SOURCE MIX knob, HPF CUTOFF knob, LPF CUTOFF knob, RESONANCE knob, LFO MOD knob, PITCH FOLLOW knob, ENV MOD knob, ENV MOD polarity switch, VCA Section: MODE switch, LEVEL knob, LFO Section: WAVE FORM select knob, DELAY TIME knob, RATE knob, ENV Section: ATTACK TIME knob, DECAY TIME knob, SUSTAIN LEVEL knob, RELEASE TIME knob, CHORUS Section: CHORUS button, BANK A, B, C buttons, PATCH NUMBER 1–16 buttons, MANUAL button, Power switch
- Effects: Chorus, Delay
- Step Sequencer: 16 step, 16 pattern
- Nominal Input Level: INPUT jack: -0 dBu

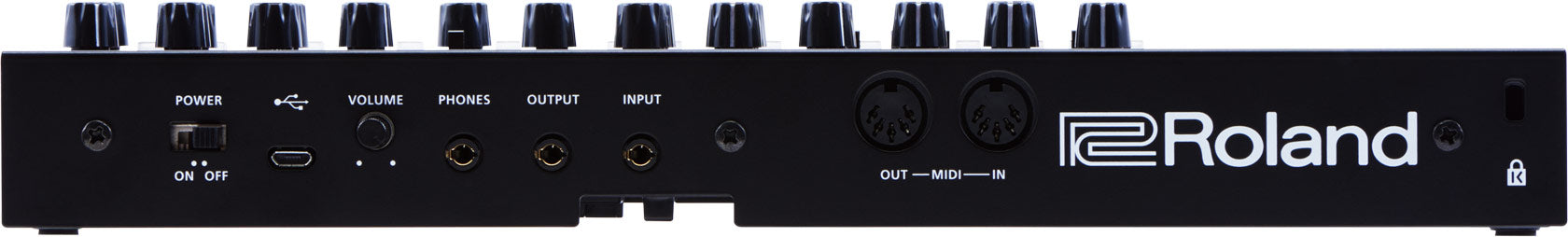

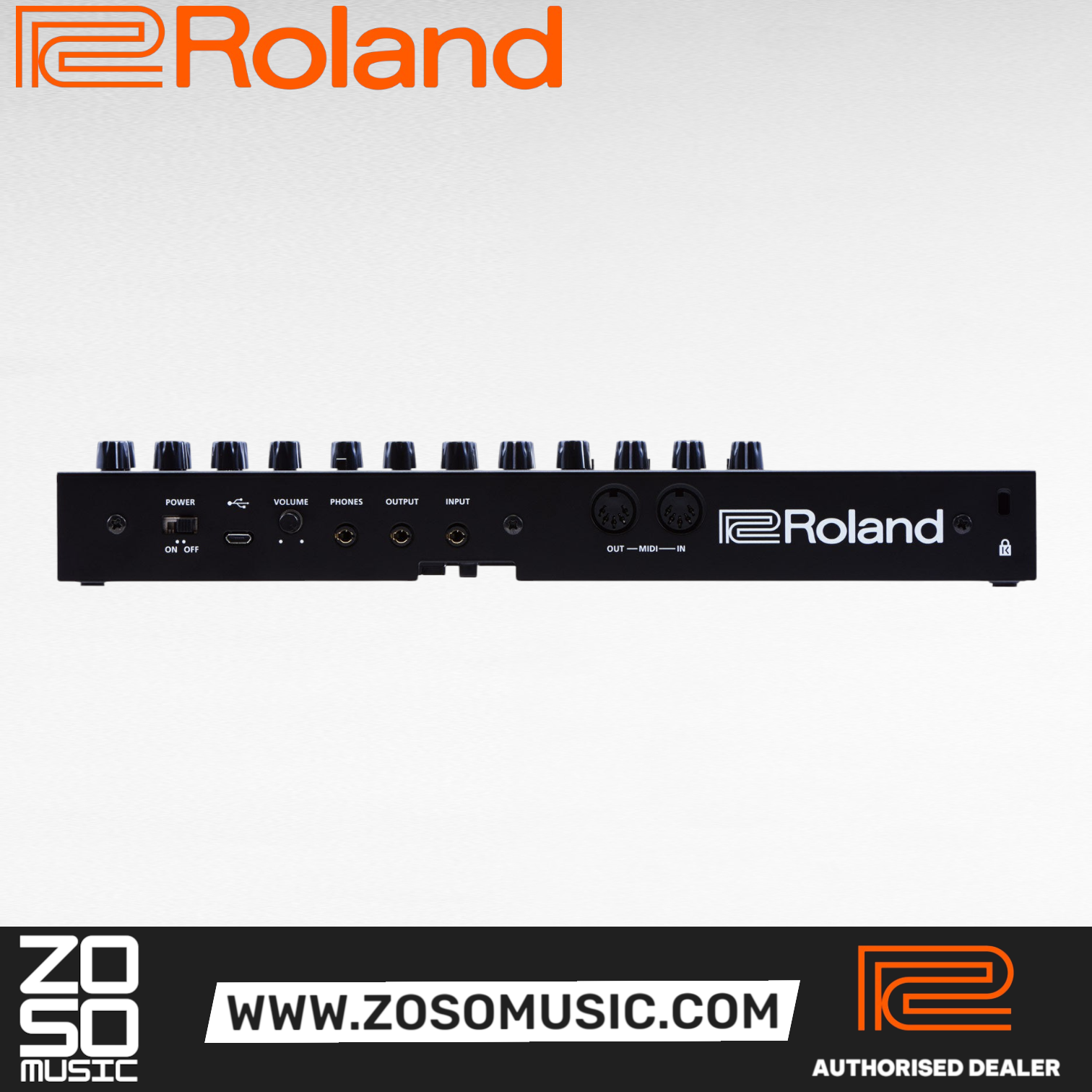

- Connectors: PHONES jack: Stereo miniature phone type, OUTPUT jack: Stereo miniature phone type, INPUT jack: Stereo miniature phone type, MIDI (IN, OUT) connectors, USB port: MicroB type (Audio, MIDI)
- Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB Bus power
- Current Draw: 500mA (USB Bus power)
- Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4

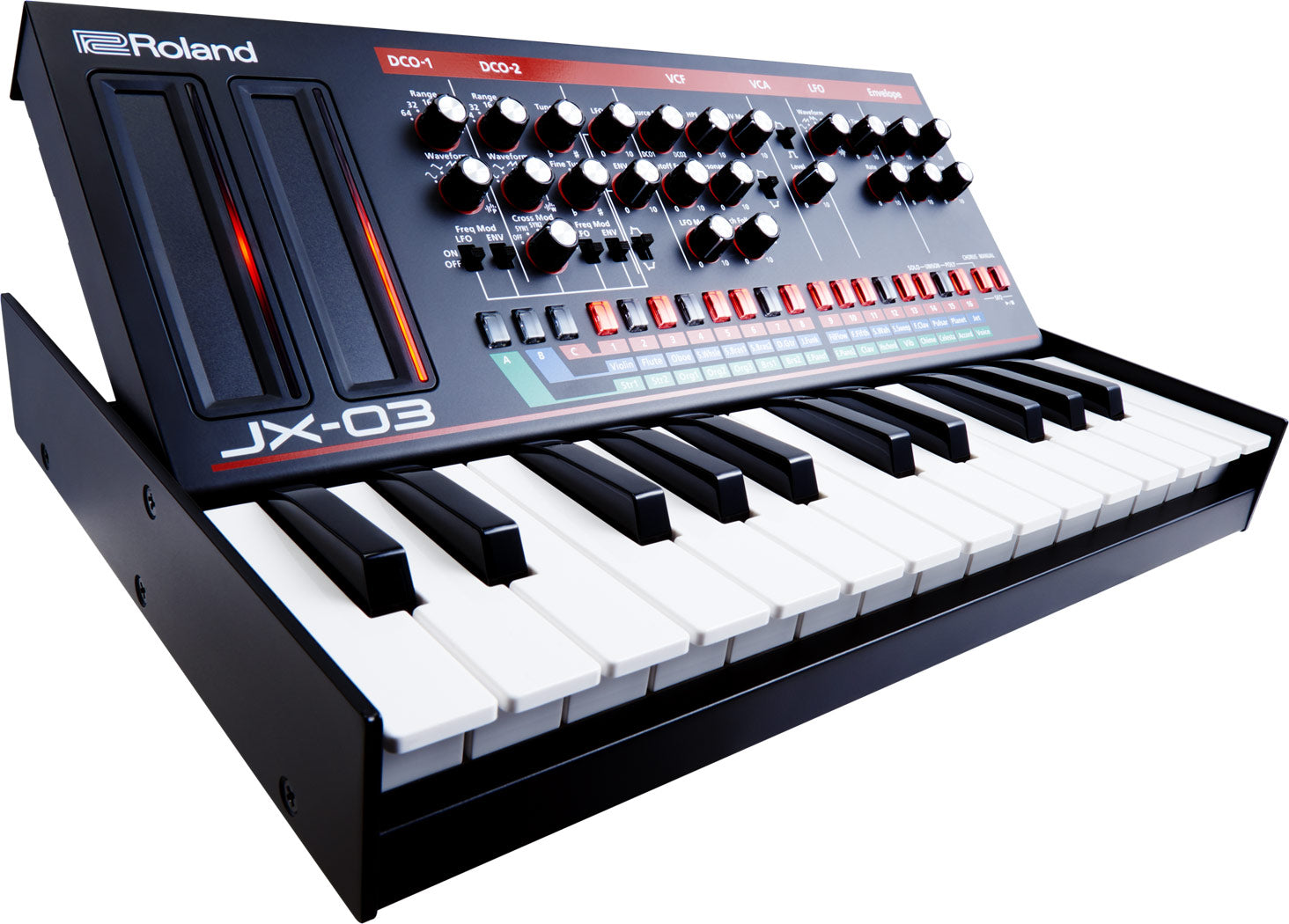

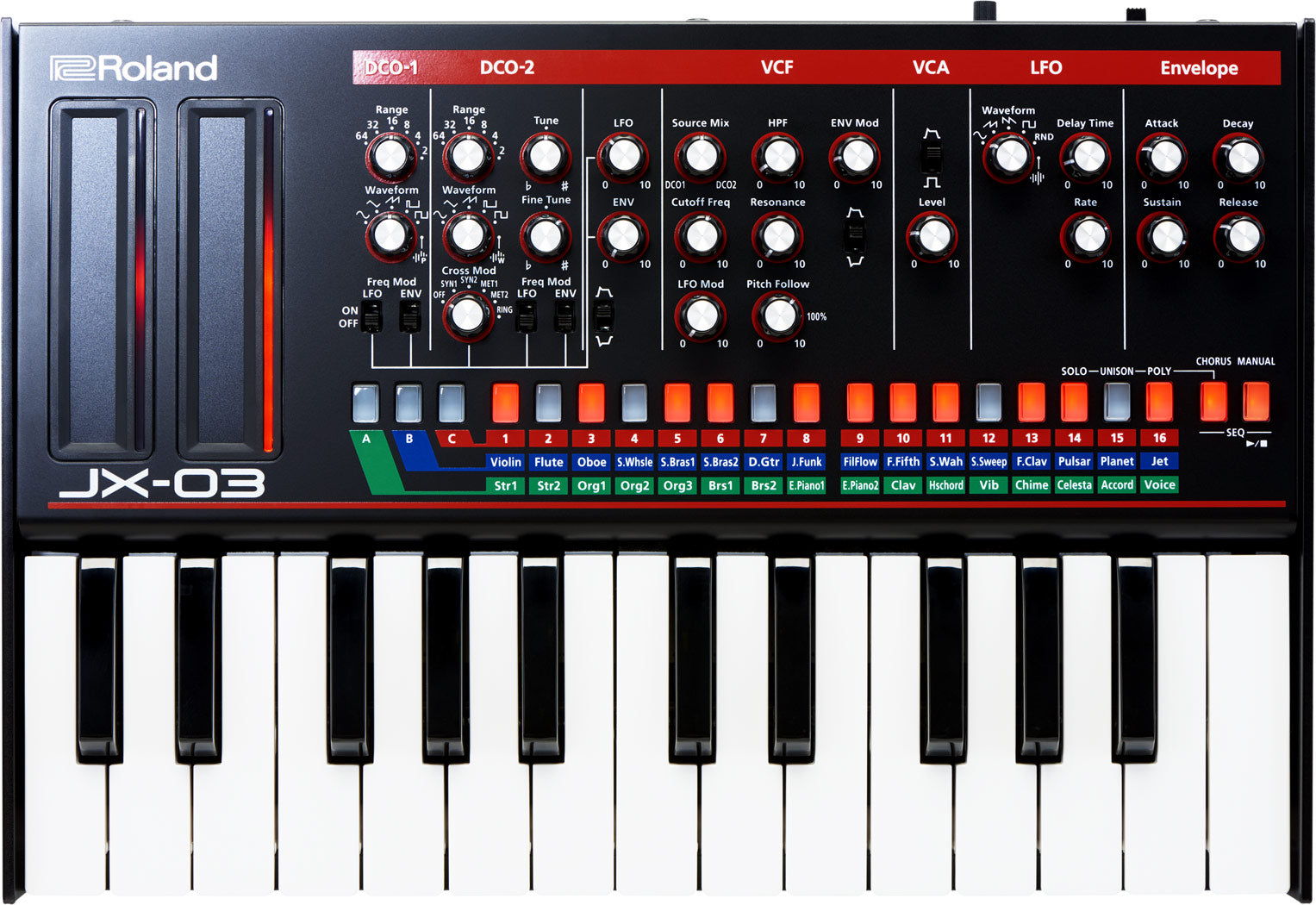

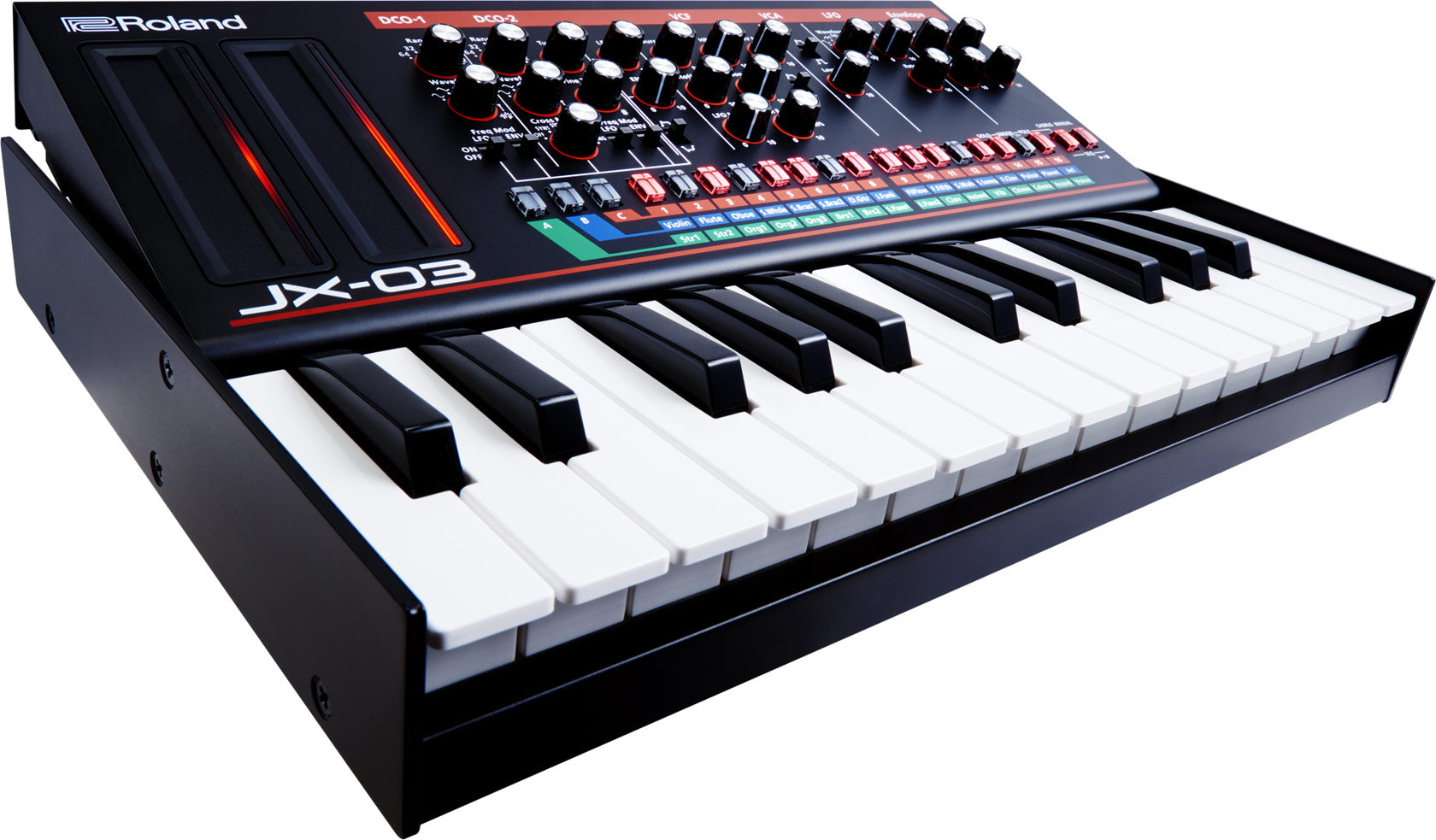

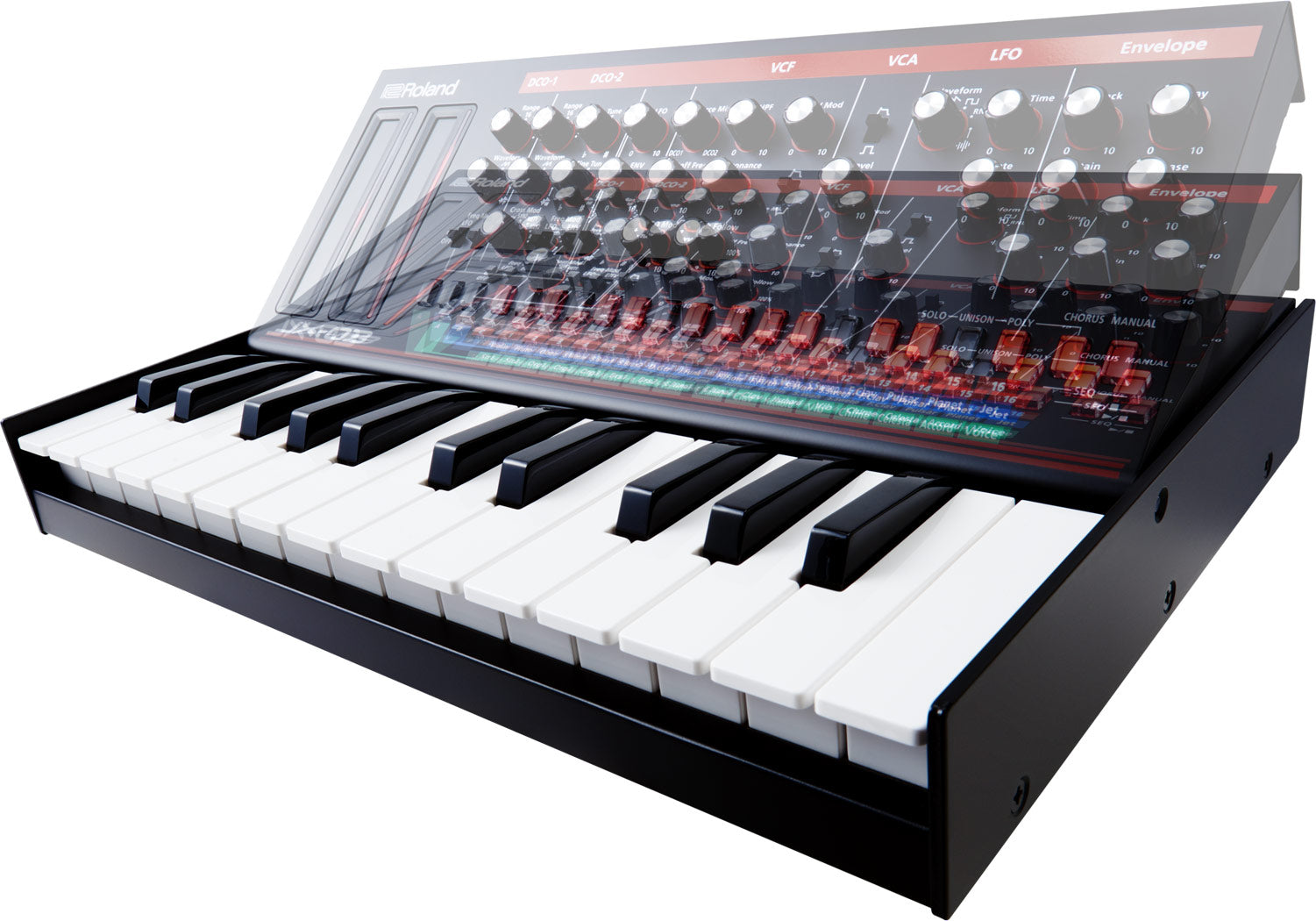

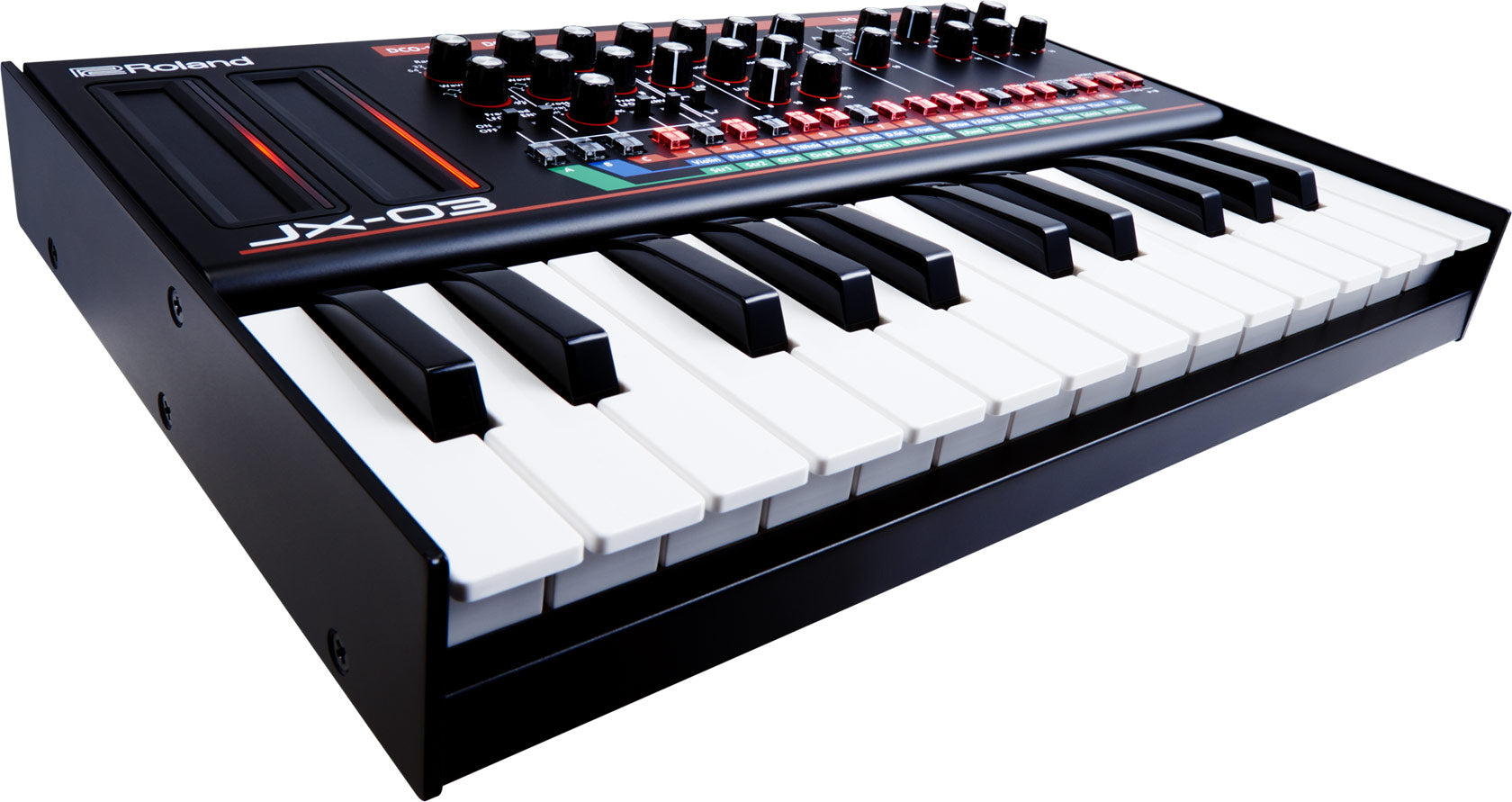

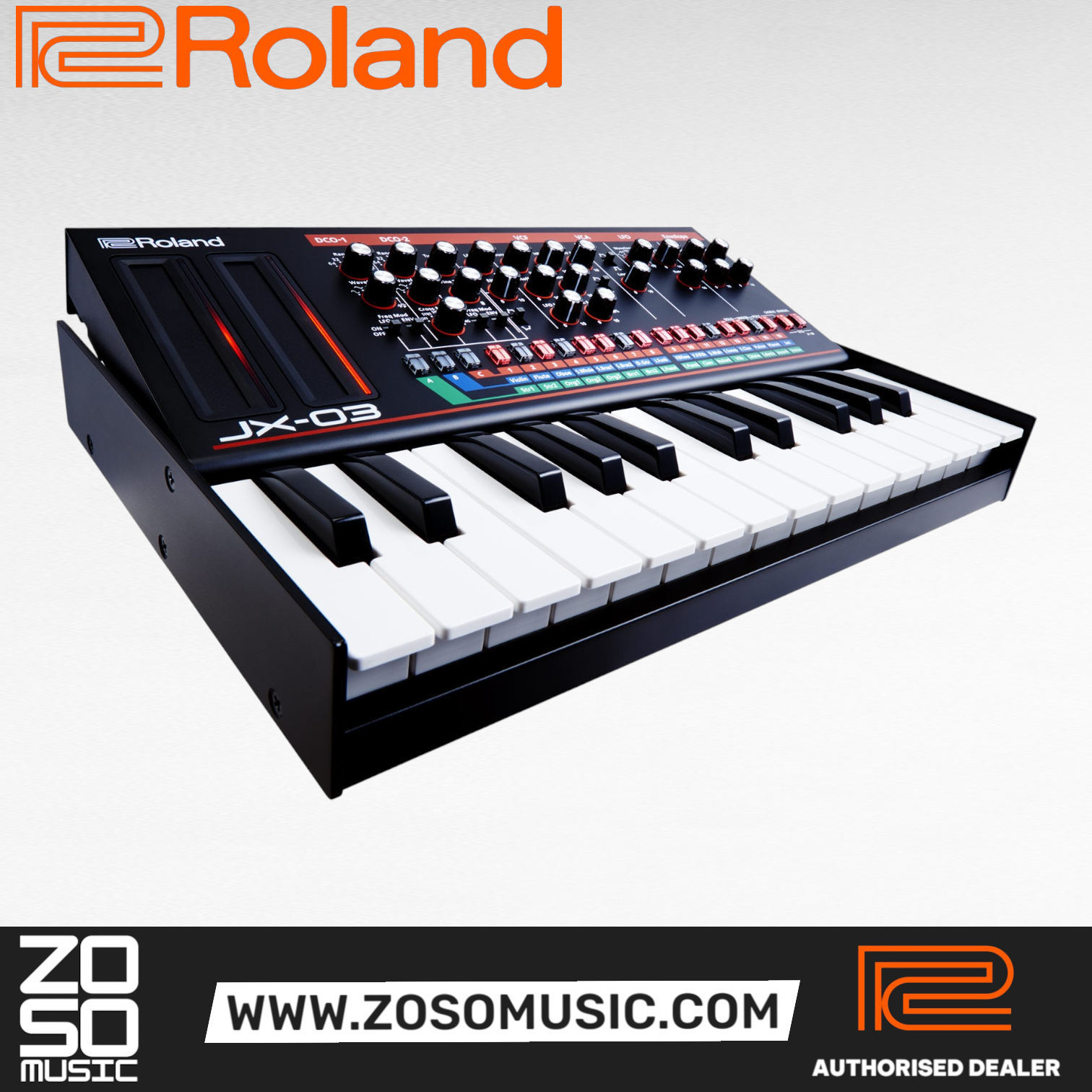

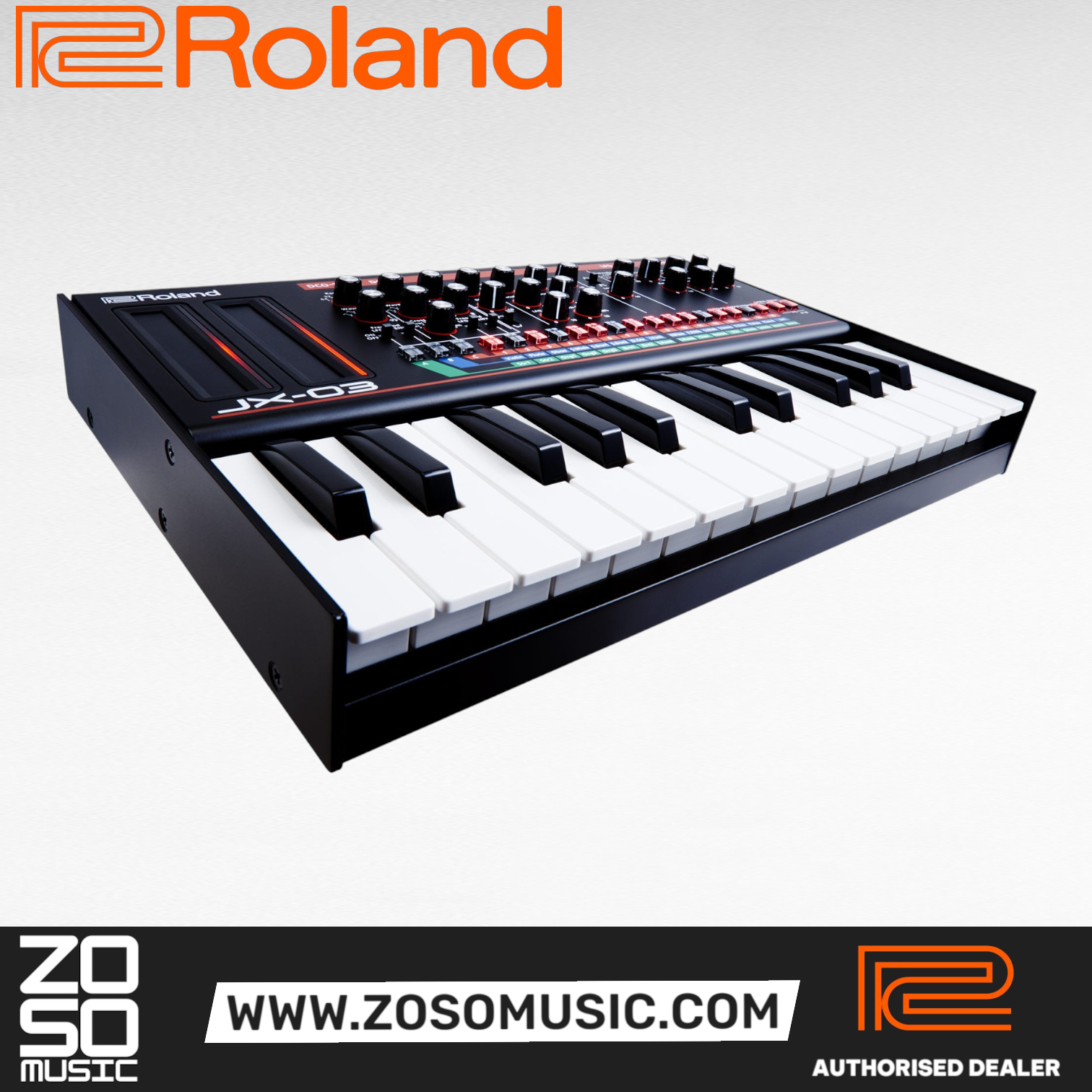

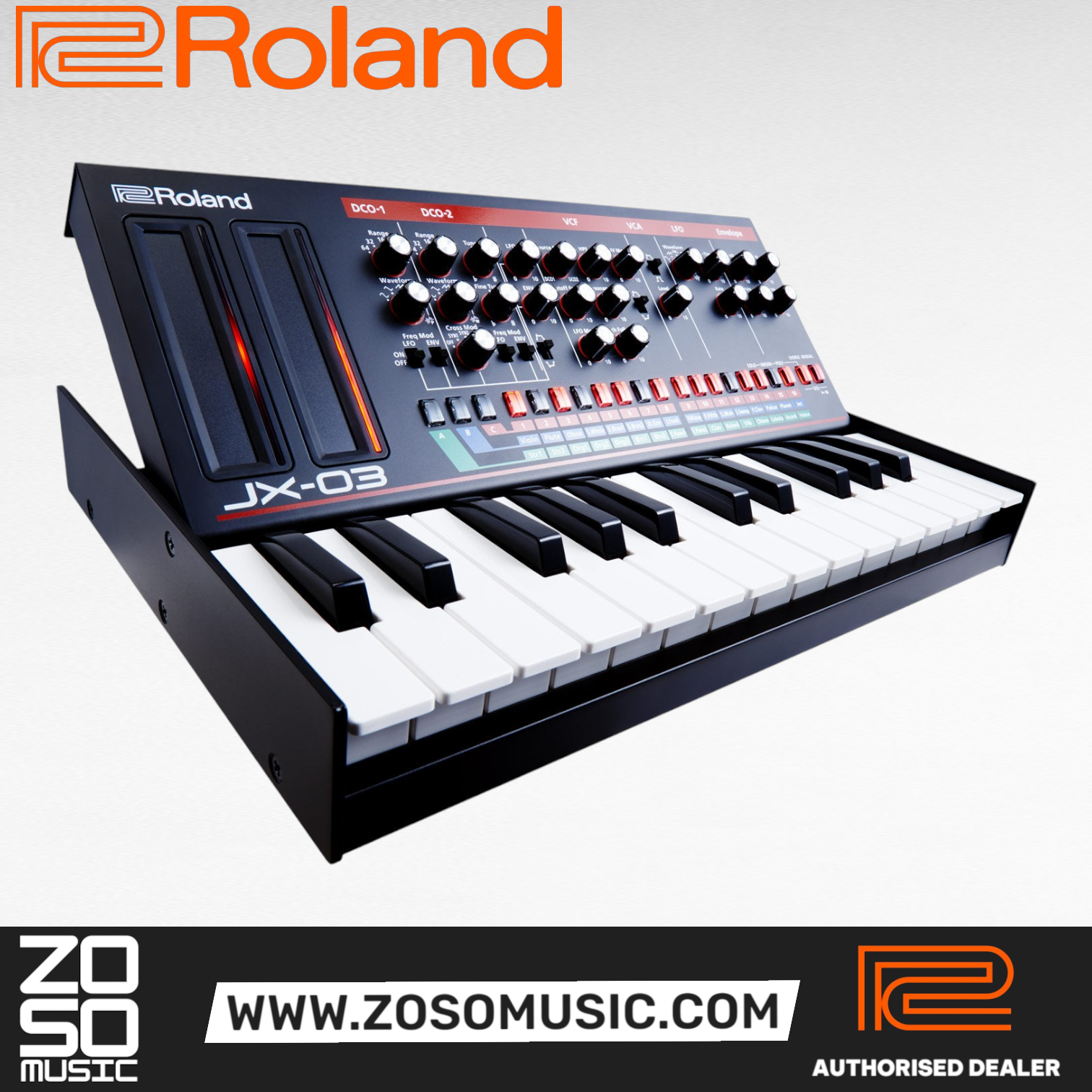

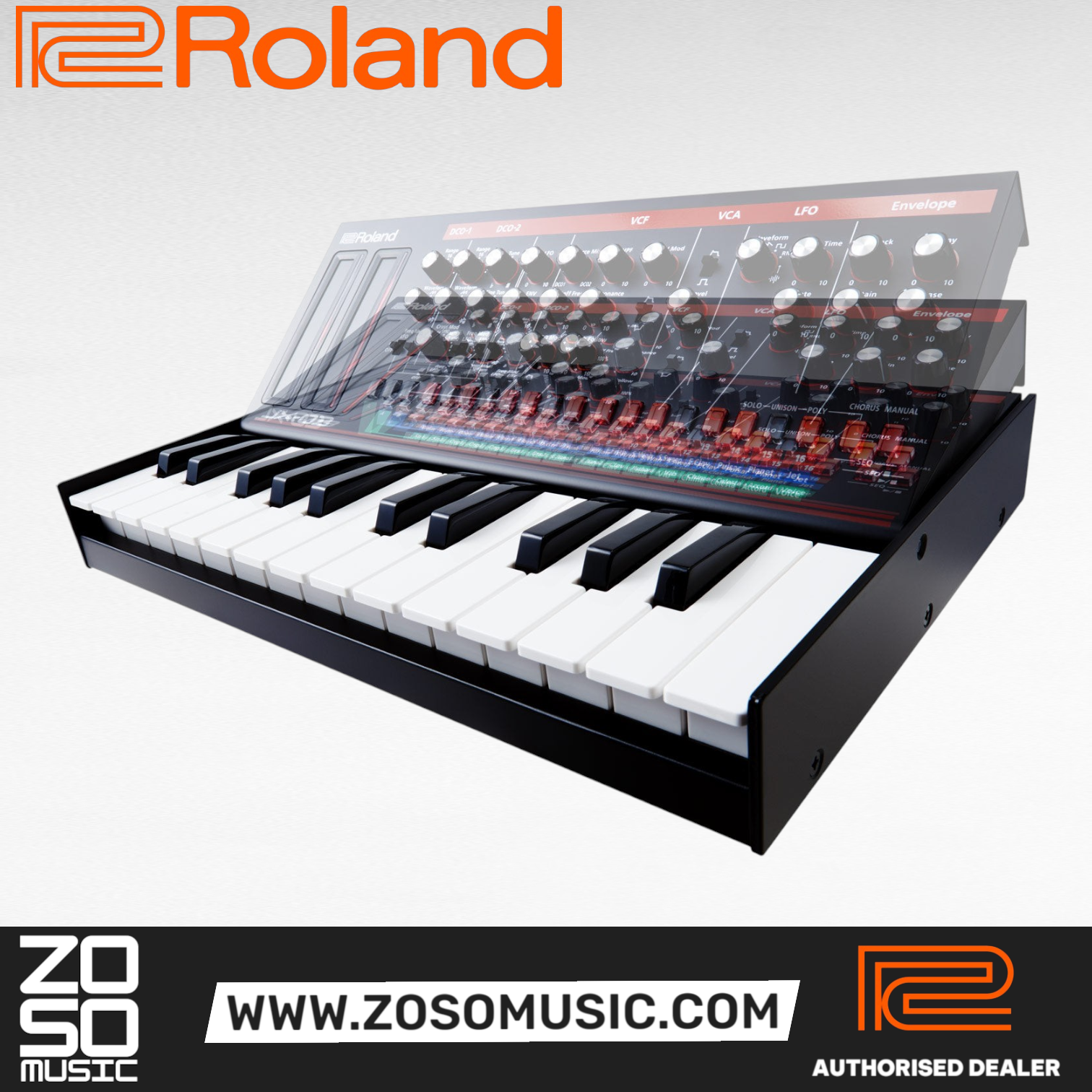

- Options (sold separately): Keyboard unit: K-25m
- SIZE AND WEIGHT
- Width: 300 mm (11-13/16 inches)
- Depth: 128 mm (5-1/16 inches)
- Height: 46 mm (1-13/16 inches)
- Weight: 950 g (2 lbs 2 oz)
